Garage Door Insulation for Summer Cooling: What It Costs and What It Saves
Learn how insulated garage doors keep summer heat out, improve cooling efficiency, and what you'll pay for different R-values. Complete cost breakdown.
A mid-grade insulated steel garage door runs $1,500 to $3,200 installed for a standard 16x7 opening in 2026, compared to $800 to $1,400 for an uninsulated single-layer steel door of the same size — a premium of roughly $800 to $1,200 for the insulation upgrade. In a hot-summer climate, that upgrade saves about $313 a year in cooling costs on an attached garage. Here is what the insulation actually does in July heat, what R-value you should pay for, and how to tell whether the upgrade pays for itself in your house or somebody else's.
What insulation does in summer, in real numbers
Summer heat transfer through a garage door is not subtle. A 112-square-foot door at R-0 with a 38-degree temperature differential loses 4,256 BTU per hour, while the same door at R-18 loses only 237 BTU per hour — a 94% reduction. That is not a marketing figure; it is what the physics does when you put foam in the panel.
Translated into a utility bill: for a 16x7 attached garage in a hot-summer climate, upgrading from an uninsulated R-0 door to a polyurethane R-18 door drops annual energy costs from $385 to $72. The $313 in annual savings is what you are actually buying when you pay the insulation premium.
That number matters because it is the only number that determines whether the upgrade is worth the money. Everything else — comfort, quieter operation, a garage that is bearable in August — is a side benefit. The math has to work on the utility bill first.
The cost tiers in 2026
Here is what the market looks like right now for a 16x7 door, installed, in most metro areas:
| Tier | R-value | Installed price (16x7, 2026) | What you get |
|---|---|---|---|
| Uninsulated single-layer steel | R-0 | $800 – $1,400 | One layer of steel, no thermal break, no interior skin |
| Entry insulated (polystyrene) | R-6 to R-9 | $1,200 – $1,800 | Foam board sandwiched between two steel skins |
| Mid-grade insulated (polyurethane) | R-12 to R-18 | $1,500 – $3,200 | Injected foam bonded to both skins, better rigidity and seal |
| Premium insulated | R-18+ | $2,500 – $5,000+ | Thicker sections, higher-grade seals, better hardware |

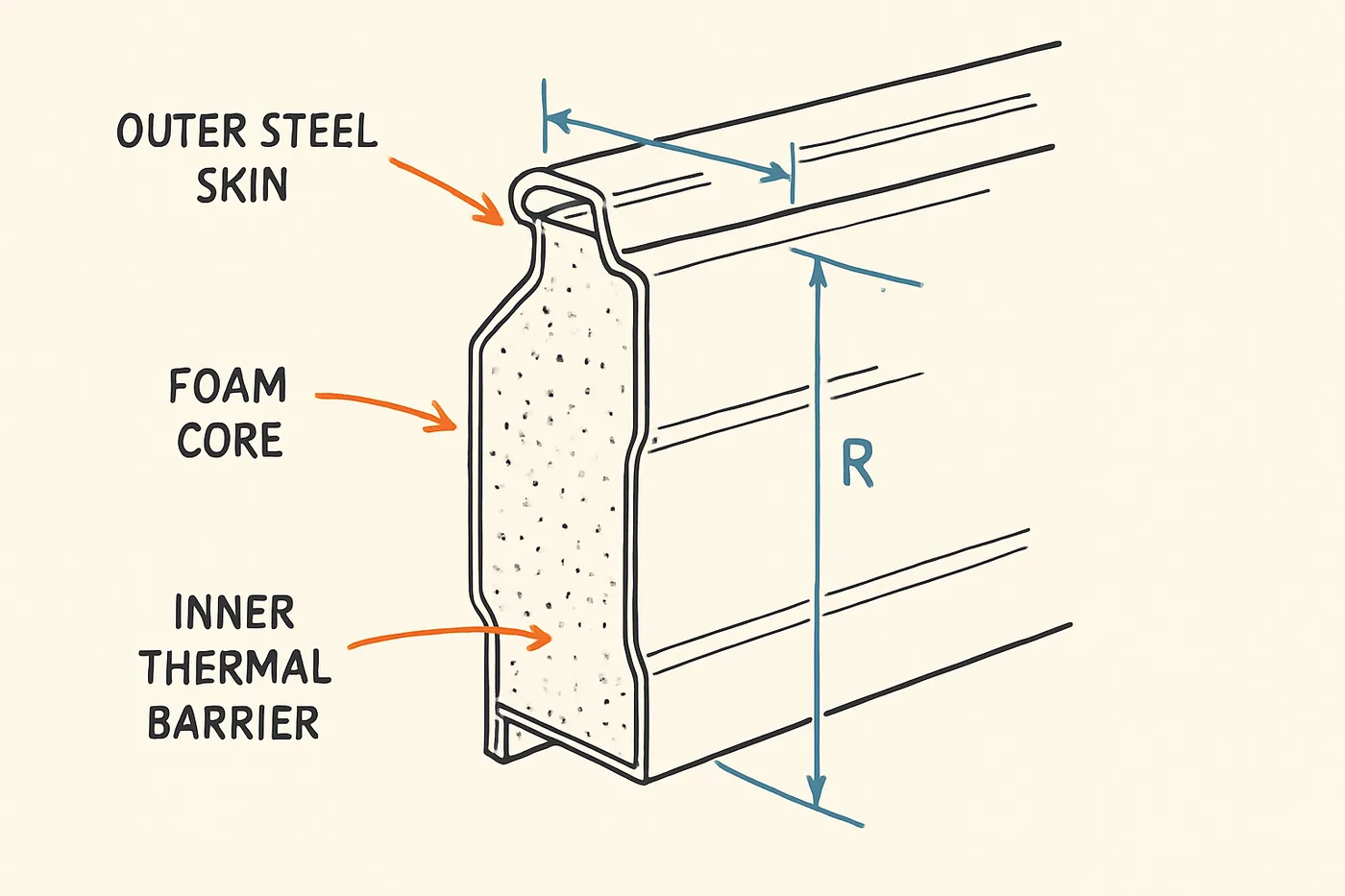

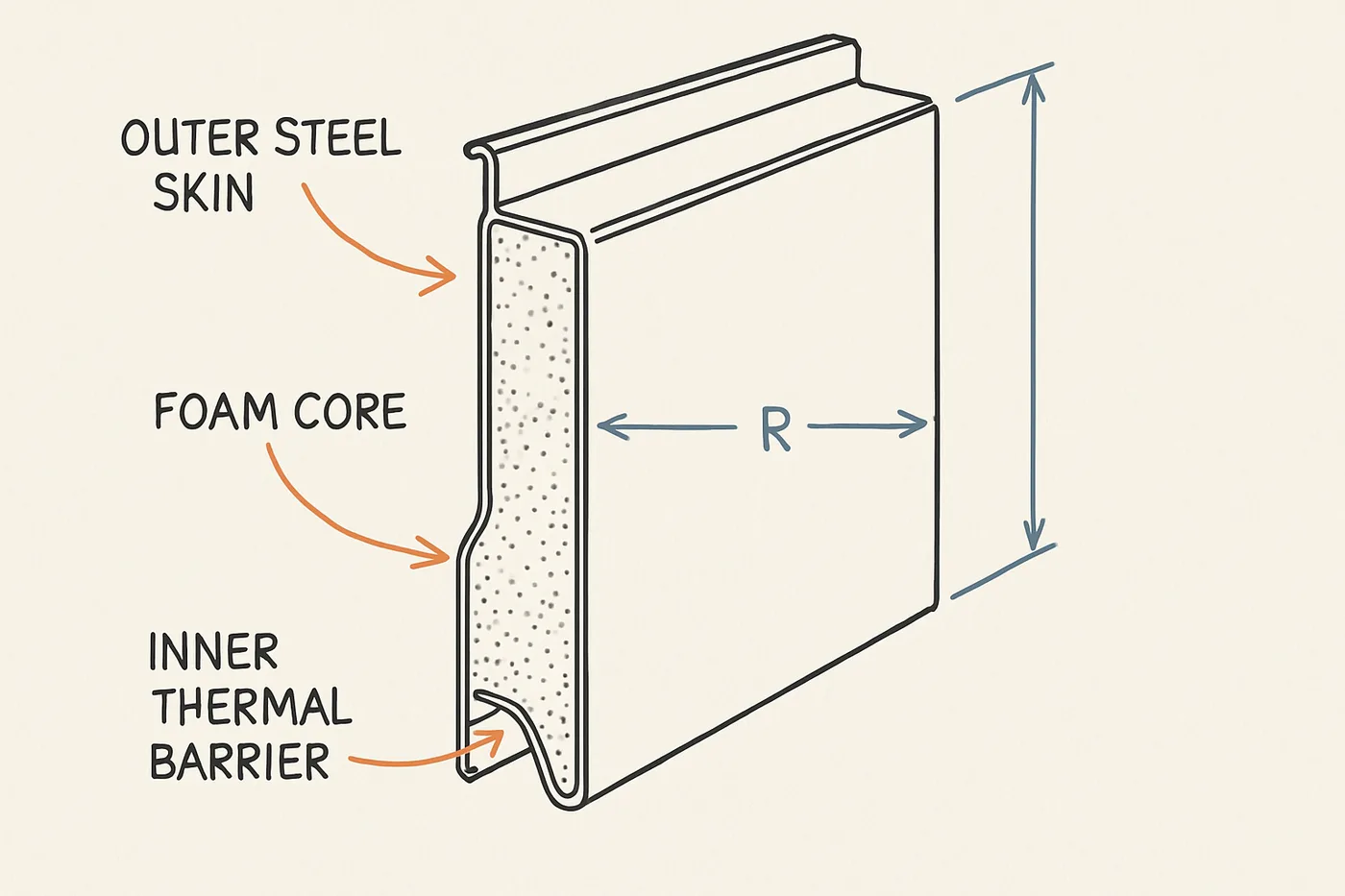

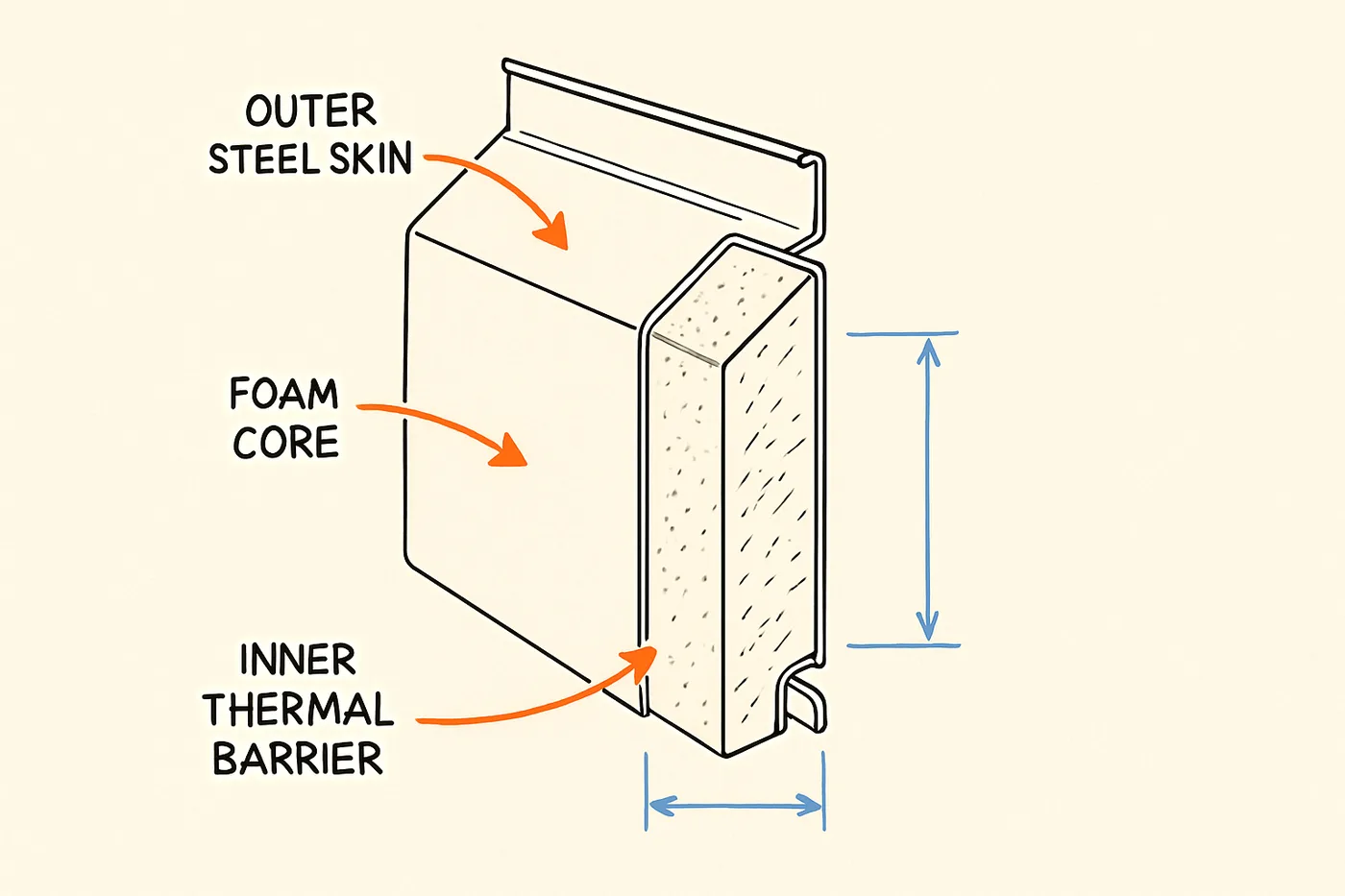

The gap between the entry polystyrene tier and the mid-grade polyurethane tier is where most of the real thermal performance lives. Polyurethane foam delivers approximately R-6.5 per inch of thickness, compared to roughly R-4 per inch for polystyrene, so a 2-inch polyurethane door reaches R-13 while a 2-inch polystyrene door lands closer to R-8. If a salesperson quotes you an R-value without telling you which foam it is, ask. The difference is not cosmetic.
The R-value you actually need
More insulation is not always the right answer. It is the right answer up to a point, and past that point, you are paying for R-value that does not do work.
For an attached garage that shares a wall with conditioned living space, the useful working R-value range for the garage door is R-12 to R-16, because the garage temperature sets the boundary condition for the shared wall. R-18 is not wrong; it is diminishing returns after that band.
For a detached garage you do not cool, you are not saving anything on utilities. The door insulation only matters if you use the space — workshop, gym, home office. If you do not, buy the uninsulated door and put the money somewhere else.
The variable most homeowners ignore: seals
An R-18 door with a shot bottom seal performs worse than an R-9 door with tight perimeter sealing. Air infiltration around the door does more thermal damage than conduction through the panels, and the seals wear out on a schedule most homeowners never track.
The bottom U-shaped seal typically lasts five to ten years before the rubber loses its compression memory and stops pressing flat against the floor. Jamb weatherstripping lasts ten to fifteen years on a door with moderate sun exposure before the vinyl stiffens and loses its sealing compression. Both of those clocks are running whether you pay attention or not.
Wind makes it worse. A 20 mph wind creates approximately 1.6 psf of pressure on a 16x7 garage door — roughly 180 pounds pushing air through every gap — and can triple infiltration rates compared to calm conditions. If you live somewhere with reliable afternoon wind, this is not a footnote.
If you are not ready to replace the whole door, seals are the highest-return money you can spend. A threshold seal kit for a 16-foot garage door runs between $50 and $120, and combined with a fresh bottom U-seal, it restores the perimeter sealing that panel insulation depends on. And adding foam tape to the panel joints on an uninsulated door can reduce air infiltration by 15 to 20% — not a substitute for a real insulated door, but a stopgap that costs under $30.
For Las Vegas homeowners staring down a July replacement, A+ Garage Doors handles both seal replacement and full insulated door installs, which is worth knowing because bundling the seal work into an install visit is cheaper than a separate service call.
When the upgrade pays for itself
Take the mid-grade insulated upgrade at the middle of its price band and the $313 annual savings figure: the $800 to $1,200 insulation premium at $313 in annual savings represents approximately a 3.2-year payback period.
That is the base case. It gets better in harsh climates. In extreme climates such as Phoenix summers or Minneapolis winters, the payback period for upgrading from R-0 to R-18 can be under two years because the temperature differential the door must fight is larger for more hours of the year. It gets worse in mild climates — coastal California, the Pacific Northwest — where the differential is small and the door is not fighting much heat to begin with.
The payback also depends on whether the garage is attached and whether you cool it. A detached, uncooled garage has a payback of never. An attached garage with a bonus room above it has a payback shorter than the base case, because you are also protecting a conditioned space directly above the ceiling.
Run your own numbers in the ROI lab with your actual utility rate and climate zone before you decide the premium tier is worth it. The energy efficiency lab will let you model the BTU load for your specific door size and temperature differential.
What the quote probably leaves out
Every insulated door quote I have looked at is missing at least one of these. Ask about all of them before you sign:
- Haul-away of the old door and tracks
- New bottom U-seal (not just reusing the old one on new door)
- New jamb weatherstripping
- Threshold seal (this is almost never included)
- Cycle-rated springs sized for the heavier insulated door — insulated doors weigh more than uninsulated, and the wrong spring will burn out early
- New rollers, especially nylon rollers if you want the insulated door to also be quieter
An insulated door with the old seals reinstalled is not an insulated door. It is a more expensive door with the same air infiltration problem. If the quote does not list new perimeter seals as a line item, they are not doing it. Garage Door Pro Services offers a free garage door safety inspection that will surface which seals are failing before you commit to the door itself — useful if you are trying to figure out whether you need a full replacement or just a seal refresh.
Decide this
Answer three questions before you agree to the insulated upgrade:
- Is the garage attached to conditioned living space? If no, and you do not use the garage as a workspace, buy the uninsulated door.
- What is your climate? Hot-summer or cold-winter climates make the math work in under three years. Mild climates push payback past seven, which is longer than most sellers stay in a house.
- Are the seals in the quote? All three — bottom, jambs, threshold. If they are not itemized, they are not included, and the R-value on the panel is doing half the job it is being sold to do.
If the answer to all three is yes, buy the R-12 to R-16 door and stop there. R-18+ is available and defensible, but the return curve flattens past R-16 on an attached residential garage. Spend the difference on better seals, better springs, and nylon rollers, in that order.
